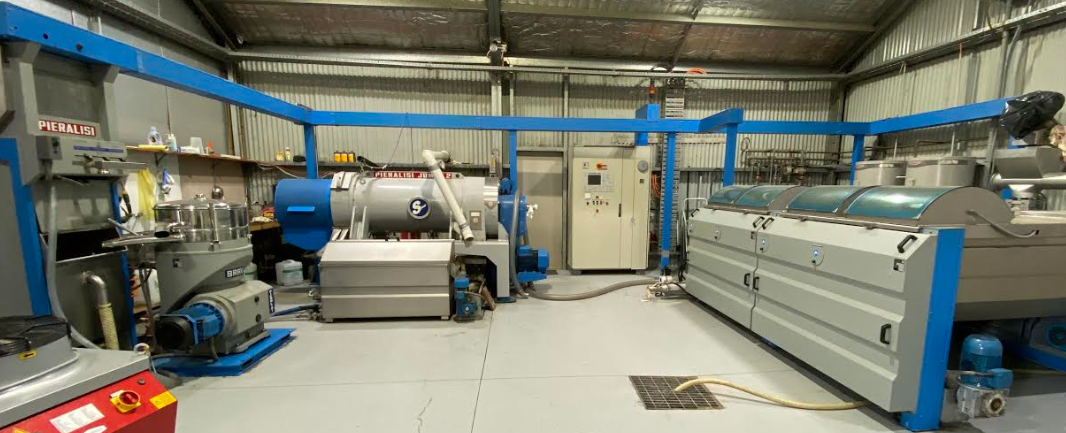

Pieralisi Olive Oil Processing Plant 2.8T/hr Line

Hurry… Grab Yourself A Bargain!

The owner has given instructions to sell urgently!  No reasonable offer will be refused!  Machine to be needs sold now due to upgrade.  The entire plant is being decommissioned in the coming weeks to make way for the new machine then packed into storage.

Pieralisi Olive press 2.8 tonnes/hour has very low hours and has only done around 3000 hours.

This machine has produced multi-award-winning extra virgin olive oil and has always been owner-operated.  The entire plant is very well maintained and fastidiously cleaned.  The plant has been in operation (including the current harvest) for the last 15 years and has only been run about 200 hours per season with fruit from the owners’ single estate. This machine is certainly capable of processing at a much higher capacity and offers the new owner a low hour machine in perfect condition with all manuals /instructions and paperwork.

Pieralisi PANORAMA 4 with upgraded JUMBO 2 Decanter and Bravo Separator

Here is the equipment list for the full line:

  • Olives Receival Hopper 4T capacity
  • Olive Conveyor 10m
  • Olive Conveyor 6.5m
  • Leaf & twig remover Mod. FP/75
  • Hydropneumatic Washing Machine Mod. OPTIMA L20, Stainless Steel
  • Olive Screw Elevator, Stainless Steel
  • Double Grid Hammer Crusher HP30 (parts in contact with paste made of stainless steel)
  • 2,800 kg capacity – 4 x Malaxers Kneader Group with a capacity of 700kg each (2+2 system).  Each malaxer is equipped with a special washing system.
  • Mono pump P50 equipped with inverter for Panorama Plant
  • Upgraded Horizontal Centrifugal Extractor Mod. Jumbo 2 (Capacity up to 2.8T/hr).  Purchased 2008.  Bearings changed 2017.
  • Feeding Pump EM44
  • Vibro-filter Oil Collecting Tank
  • Vertical Centrifuge – Separator 1500/2000 Mod. BRAVO
  • Electrical Control Panel Complete with Valves for Boiler
  • Tank Group for Feeding Separator
  • Raceway – Framework – Channel, Race and Accessories
  • Horizontal Screw Conveyor, 6m x 200mm diameter
  • PLC controls all phases of the plant.
  • Rotating arm equipped with non-drip device to prevent oil loss during movement of the arm.
  • Main General Electric Control Panel for operation in Automatic or Manual mode.
  • All manuals and wiring diagrams as supplied from Manufacturer

Also includes;

  • Decanter plates ranging from R131.5 to R135.5
  • Crusher Grid range from 5mm /10 mm, 6mm / 12mm and 7mm / 14mm plus spare hammers
  • Includes plumbing box with heat exchanger as supplied with the system originally

NO REASONABLE OFFER WILL BE REFUSED, URGENT SALE REQUIRED

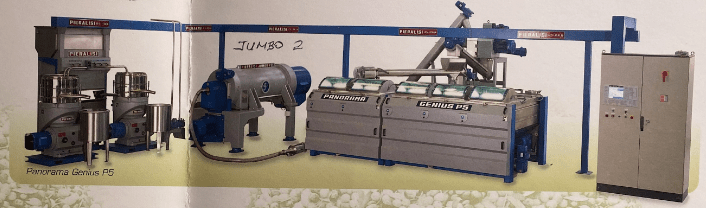

Pieralisi Panorama Genius with Jumbo 2 Decanter

Jumbo Decanter: Featuring the reliability of the Major Series but with higher productivity, yield and total efficiency.  The retention time in the drum can be adjusted for liquids (water-oil) or olive husks according to the olive quality.  Screw speed can be adjusted which varies the olive-husk retention time on the cone, and the water and oil level depending on the olive characteristics and qualities.  The Jumbo 2 can be back-flushed along the cone surface to reduce the residual fats.  The back-flushing device is fitted along the cone inside the drum.

Automatic Vertical Separator:

Optima Washing System for Olive Fruit:

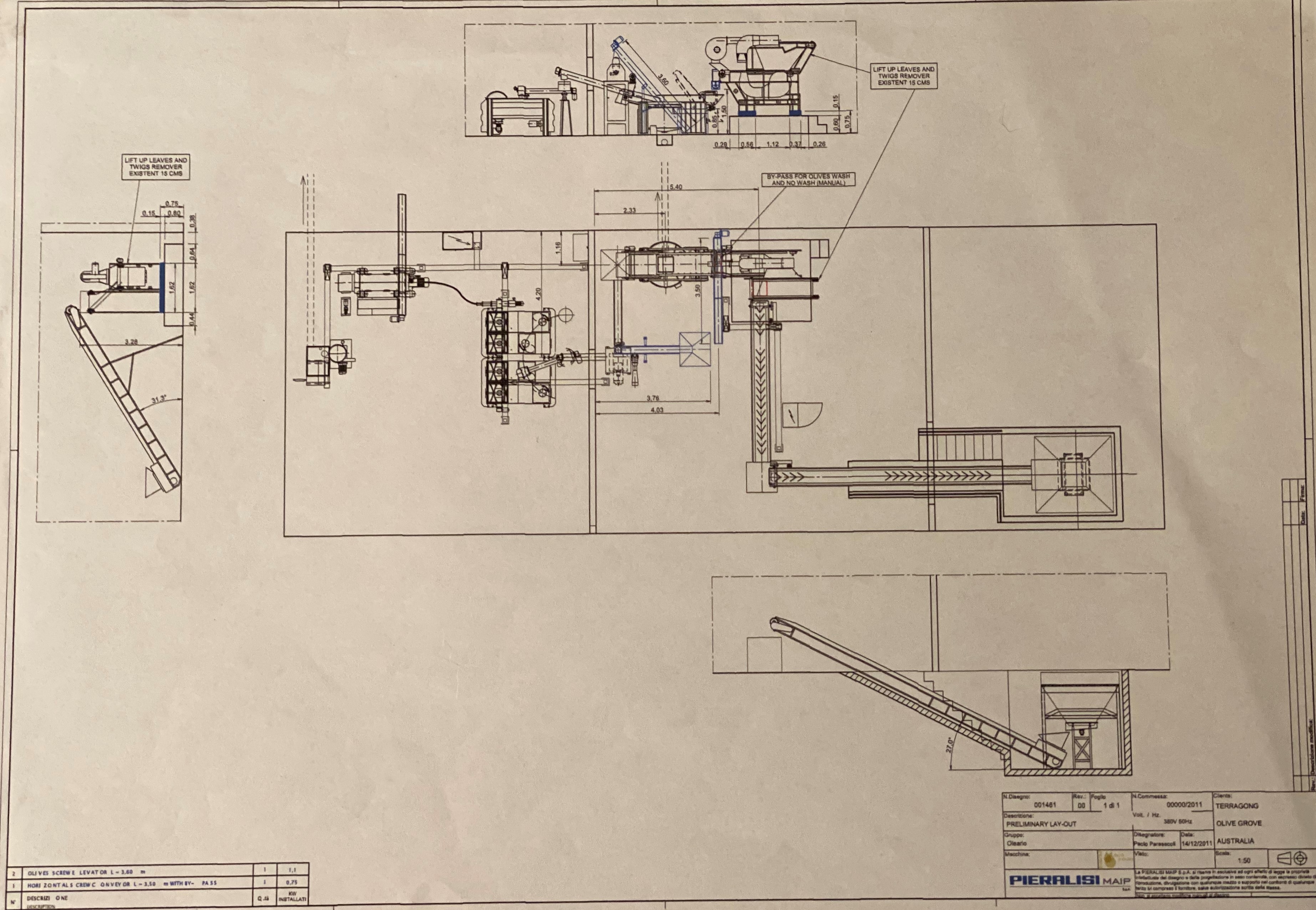

Panorama Genius Current Layout:

NO REASONABLE OFFER WILL BE REFUSED, URGENT SALE REQUIRED

An opportunity awaits, low hours, recent servicing, impeccable condition… first to inspect will buy!

Price:  POA
